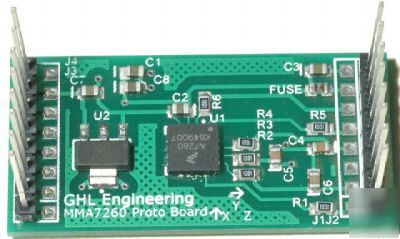

MMA7260 ±1.5g/±2g/±4g/±6g, 3-Axis, Analog Acceleration Sensor ( ACCELEROMETRE )

DESCRIPTION : The MMA7260QT low cost capacitive micromachined accelerometer features signal conditioning, a 1-pole low pass filter, temperature compensation and g-Select which allows for the selection among 4 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices. Includes a Sleep Mode that makes it ideal for handheld battery powered electronics. FEATURES : • Selectable Sensitivity (1.5g/2g/4g/6g) • Low Current Consumption: 500 μA • Sleep Mode: 3 μA • Low Voltage Operation: 2.2 V – 3.6 V • 6mm x 6mm x 1.45mm QFN • High Sensitivity (800 mV/g @ 1.5g) • Fast Turn On Time • Integral Signal Conditioning with Low Pass Filter • Robust Design, High Shocks Survivability • Pb-Free Terminations • Environmentally Preferred Package • Low Cost Typical Applications • HDD MP3 Player: Freefall Detection • Laptop PC: Freefall Detection, Anti-Theft • Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass • Pedometer: Motion Sensing • PDA: Text Scroll • Navigation and Dead Reckoning: E-Compass Tilt Compensation • Gaming: Tilt and Motion Sensing, Event Recorder • Robotics: Motion Sensing ORDERING INFORMATION Device Name Temperature Range Package Drawing Package MMA7260QT –40 to 105°C 1622-02 QFN-16, Tray MMA7260QR2 –40 to 105°C 1622-02 QFN-16,Tape & Reel
