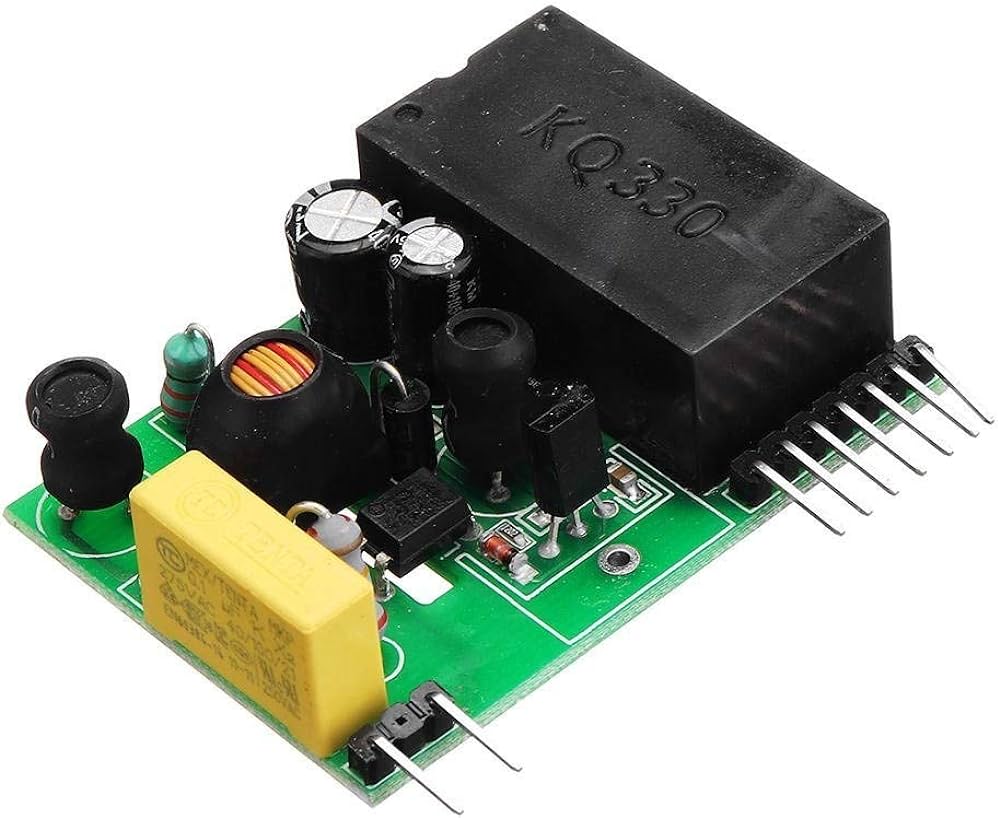

KQ330 Module de communication par ligne électrique

DESCRIPTION : The PLC can transmit the broadband data via power line, which are suitable for either residential (at-home) or commercial (offices, apartments, hotels, warehouses) network applications, which utilize power lines. No need to install new wires any more, or you can connect the internet anywhere with the PLC. These adapters enable the effortless creation of a high-speed network that supports video, voice and data. Power line communication (PLC) carries data on a conductor that is also used simultaneously for AC electric power transmission or electric power distribution to consumers. It is also known as power line carrier, power line digital subscriber line (PDSL), mains communication, power line telecom (PLT), power line networking (PLN), and broadband over power lines (BPL). The current application areas are mainly concentrated in the intelligent home. Intelligent utilities such as remote meter, reading system, street lighting remote such as various types of devices data acquisition. FEATURES: Supports Both RS232 and TTL Interface. Universal supply works over a power line voltage range of 85 to 265 VAC, 50~60Hz Support QAM 256/64/16, DQPSK,DBPSK and ROBO modulation schemes Up to 85 Mbps data rate on the power line 56-bit DES Link Encryption with key management for security. Low power consumption SPECIFICATIONS: Operating frequency 120 ~ 135KHZ, interface baud rate 9600bps. The actual baud rate 100bps. Receiving sensitivity ≤1mV The band rejection ≥ 60 dB Bandwidth ≤10 KHZ Insulation resistance:  500V  ≥ 500M [Omega] Power supply: DC 5V when the receiver: ≤11mA sent ≤230mA Power frequency with stand voltage: AC test between GND 3000V 1min no breakdown, no leakage current.
