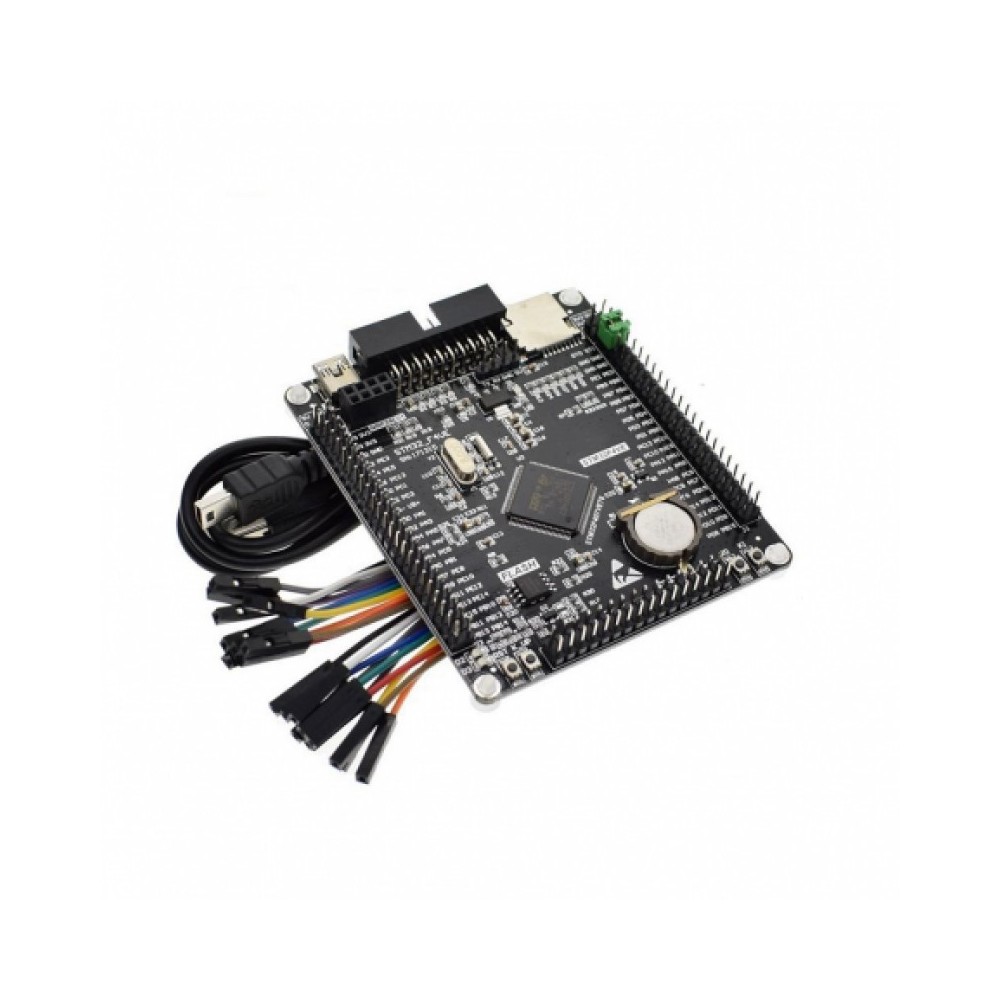

STM32F407VET6 DEVELOPPEMENT ARM Cortex-M4 Core With DSP And FPU STM32

Description : The STM32F405xx and STM32F407xx family is based on the high-performance ArmCortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix. All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces. Features: Core: Ar 32-bit Cortex-M4 CPU with FPU LCD parallel interface, 8080/6800 modes Low-power operation 312-bit, 2.4 MSPS A/D converters 212-bit D/A converters General-purpose DMA Up to 17 timers Up to 140 I/O ports with interrupt capability Specification: Model STM32F407VET6 Core ARM 32 Cortex M4 CPU Debug Mode SWD Number of I/O 140 Memory 192 4 Kbytes SRAM 1Mbyte Flash D/A Converters 2 x 12-bit Timer 17
