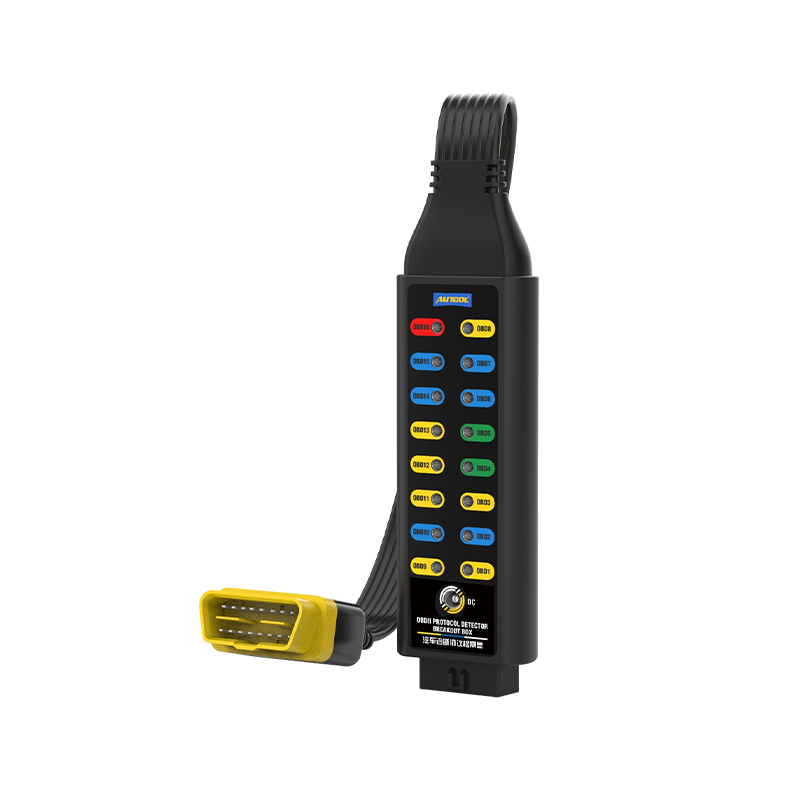

AUTOOL OBD2 Breakout Box Protocol Detector Basic Version

AUTOOL OBD2 Protocol Detector Breakout Box Diagnostic Connector Detector Basic Version AUTOOL OBD2 Protocol Detector Auto Car Breakout Box Basic Version is an automotive tool for the OBD2 diagnostic link connector which offers easy access to the OBD2 connector for monitoring signals of protocol, power, and grounds conveniently and safely. Once the Breakout Box detects an unconfirmed signal, it can be connected to a multimeter or oscilloscope for further testing. Warm Tips This product directly connects to the vehicle data link. Improper use may damage the vehicle data communication system, related circuits, or systems. When you are not sure whether your operation will cause problems, please stop using this product immediately. When you are not sure about the electrical circuit on the car, do not use a jumper to short-circuit the input jack of this product. Do not use this product to connect a load device with a power exceeding 1 ampere. Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product. Manual (Basic Version ) Download What Is The Difference Between AUTOOL OBD2 Breakout Box Protocol Detector? AUTOOL OBD2 Protocol Detector Auto Car Breakout Box Quick Search AUTOOL OBD2 Breakout Box Protocol Detector Upgraded Version $109.00 AUTOOL OBD2 Breakout Box Protocol Detector Basic Version $59.00 AUTOOL DM303 Diagnostic Multimeter Car Circuit Tester $189.90 AUTOOL 92PCS Automotive Circuit Test Leads Kit, Multimeter Test Leads Kit with Carrying Case, Electrical Testers Wire Connectors Adapter Cables with Alligator Clips $109.00 AUTOOL BT30 ECU Emergency Power Supply Cable Includes 3A Fuse $29.00 AUTOOL OBD2 Protocol Detector Breakout Box Basic Version Features: Equipped with 16-pin OBD Interface: compatible with all models with OBD 2 interface With Diagnostic Interface: can be connected to the car interface, easy to connect to the OBD2 Cable Made of TPU Material: highly elastic, flexible and strong Full Analog OBD2 16-pin Connector: testing with multimeter and oscilloscope Connectable to 8~30V Power Supply: Breakout Box for ECU power supply for easy battery replacement Three-Year Warranty, Lifetime Maintenance:  For damage caused by non-human factors, we promise to resend parts for free within 3 years. Online Support Packing List
