Solis L-PLUS 6KW and 8KW

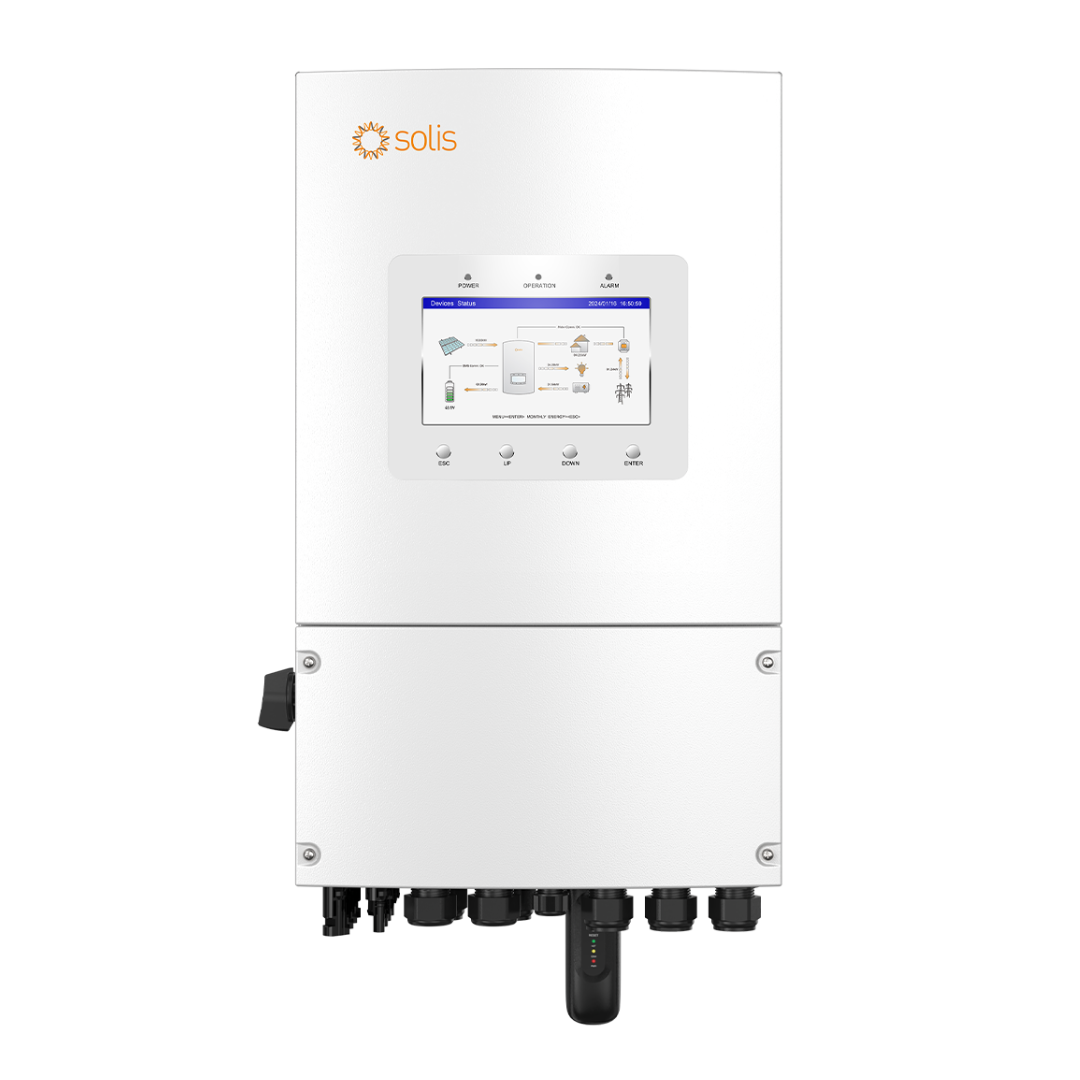

Solis S6-EH1P6K-L-PLUS 6KW Hybrid Solar Inverter 2025 Model The Solis S6-EH1P6K-L-PLUS is a powerful and versatile hybrid solar inverter designed to offer seamless integration with both solar systems and generators. With features like automatic UPS switching, customizable charge/discharge settings, and compatibility with both lead-acid and lithium batteries, it ensures optimal performance and flexibility for residential and commercial applications. Key Features Generator Connectivity: Supports multiple input methods and automatic generator On/Off control, enhancing system flexibility. Automatic UPS Switching: Provides quick 10-second automatic switching with 200% surge power backup, ensuring reliable power during outages. Surge Power Backup Overload Capability: Capable of handling overloads with 200% surge power, making it suitable for high-demand applications. Flexible Connection Options: Supports both single-phase and three-phase connections, with the ability to scale up to a maximum of 36 kW in parallel. High Charge/Discharge Current: Supports up to 135A max charge/discharge current, providing efficient energy storage and management. Customizable Charge/Discharge Settings: Offers 6 customizable charge/discharge time settings to optimize battery usage and performance. Battery Compatibility: Compatible with both lead-acid and lithium batteries, with built-in battery protection features for enhanced safety. Peak Shaving Control: Available in both “self-use” and “generator” mode to help manage energy usage and reduce utility costs. Specifications Rated Power: 6KW Battery Compatibility: Lead-acid and Lithium Max Charge/Discharge Current: 135A Surge Power Backup: 200% surge capability Generator Mode: Supports automatic generator On/Off control Connection Type: Supports both single-phase and three-phase connections, up to 36 kW in parallel Operating Mode: Self-use and Generator mode with peak shaving control Model Year: 2025 Specifications: Models 6K Input DC (PV side) Recommended max. PV array size 12 kW Max. usable PV input power 9.6 kW Max. input voltage 500 V Rated voltage 330 V Start-up voltage 90 V MPPT voltage range 90 – 435 V Max. input current 16 A / 16 A Max. short circuit current 20 A / 20 A MPPT number / Max. input strings number 2 / 2 Battery Battery type Li-ion / Lead-acid Battery voltage range 40 – 60 V Max. charge / discharge power 6 kW Max. charge / discharge current 135 A Communication CAN / RS485 Output AC (Grid side) Rated output power 6 kW Max. apparent output power 6 kVA Operation phase L/N/PE Rated grid voltage 220 V / 230 V Rated grid frequency 50 Hz / 60 Hz Rated grid output current 27.3 A / 26.1 A Max. output current 27.3 A / 26.1 A Power factor > 0.99 (0.8 leading – 0.8 lagging) THD i < 2% Input AC (Grid side) Input voltage range 187 – 253 V Max. input current 40 A Frequency range 45 – 55 Hz / 55 – 65 Hz Output AC (Back-up) Rated output power 6 kW Max. apparent output power 2 times of rated power, 10 s Back-up switch time < 4 ms Rated output voltage L/N/PE, 220 V / 230 V Rated frequency 50 Hz / 60 Hz Rated output current 27.3 A / 26.1 A Max. AC passthrough current 40 A THD v (@linear load) < 2% Efficiency Max. efficiency 96.2% EU efficiency 96.1% BAT charged by PV / AC max. efficiency 95.3% / 93.9% BAT discharged to AC max. efficiency 93.8% Protection Ground fault monitoring Yes DC reverse-polarity protection Yes Integrated AFCI 2.0 Optional Protection class / Over voltage category I / II (PV and BAT), III (MAINS and BACKUP and GEN) General Data Dimensions (W × H × D) 335 × 560 × 253 mm Weight 23.5 kg Topology High frequency isolation (for battery) Operating ambient temperature range -40 ~ 60°C Ingress protection IP66 Cooling concept Intelligent fan-cooling Max. operation altitude 3000 m Grid connection standard NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150 Safety / EMC standard IEC/EN 62109-1/-2, EN 61000-6-2/-3 Features DC connection MC4 plug (PV port) / Terminal Block (BAT port) AC connection Terminal Block Display 7.0″ LCD display & Bluetooth APP Communication RS485, CAN, Optional: Wi-Fi, GPRS, LAN
